PUSH BUTTON SWITCH, AR22F0R-10B,

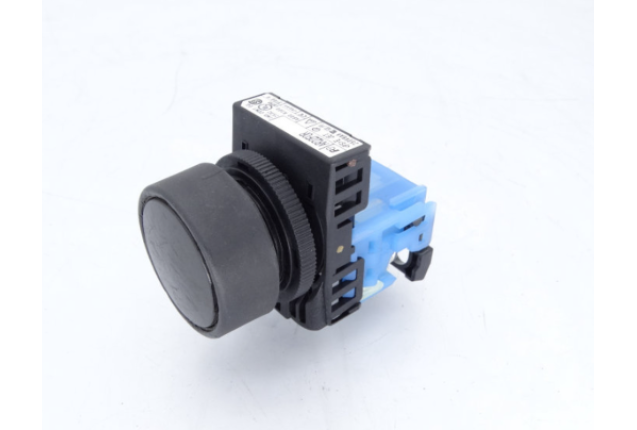

The Fuji Electric AR22F0R-10B is a high-quality 22mm momentary push button switch designed for industrial control applications. Featuring a flush round black actuator and a single normally open (1NO) contact configuration, this non-illuminated switch ensures reliable performance in demanding environments

Key Features:

• Model: AR22F0R-10B

• Manufacturer: Fuji Electric

• Actuator Type: Flush round button

• Contact Configuration: 1NO (Single Pole Single Throw)

• Operation: Momentary action

• Mounting: Panel mount with 22mm diameter cutout

• Terminal Type: Screw terminals

• Protection Rating: IP65, suitable for harsh environments

• Certifications: UL, CSA

• Operating Temperature Range: -20°C to +70°C

• Mechanical Durability: Up to 5 million operations

• Electrical Durability: Up to 1 million operations at 220VAC 3A

  This push button switch is ideal for use in control panels, machinery, and automation systems where a durable and reliable momentary switch is required. Its robust construction and high ingress protection make it suitable for use in environments exposed to dust and moisture.
