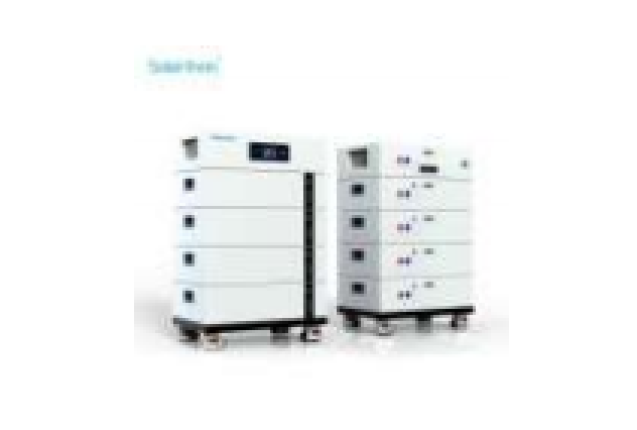

10KW/30KWH Flat Layer Stacked Energy Storage

10KW/30KWH Flat Layer Stacked Energy Storage System

Power your home or business efficiently with the 10KW/30KWH Flat Layer Stacked Energy Storage system designed for reliable and stable energy storage solutions. Built with advanced lithium battery technology, it delivers high capacity, long cycle life, and superior safety performance. Ideal for solar energy storage systems, it ensures uninterrupted power supply during outages and peak demand periods. The stacked modular design allows easy installation, scalability, and space-saving efficiency. Perfect for renewable energy users, this high-capacity energy storage system enhances energy independence and reduces electricity costs.

Product Features:

10KW/30KWH Flat Layer Stacked Energy

Storage

Rated Power: 10KW

LiFePO4 Battery: 600Ah/51.2V

AC Output Voltage: 230VAC

AC Output Frequency: 50/60Hz

AC Input Voltage Range:170-280VAC

AC Input Frequency: 50/60Hz

Maximum AC innut current/charging current:

60A/150A

Maximum PV Voltage: 500VDC

MPPT Voltage Range: 120-450VDC

PV Charge Current: 150A

Temperature For Operation: -20-+50℃

Temperature For Storage: -30 -+70℃

External Dimensions: 750*480*853mm

Weight: 270kg

Base Carton:

1 piece/CTN

76*49*17cm

Inverter Carton:

1 piece/CTN

82.5*57.5*36cm

Wooden Case:

3 piece/CTN
