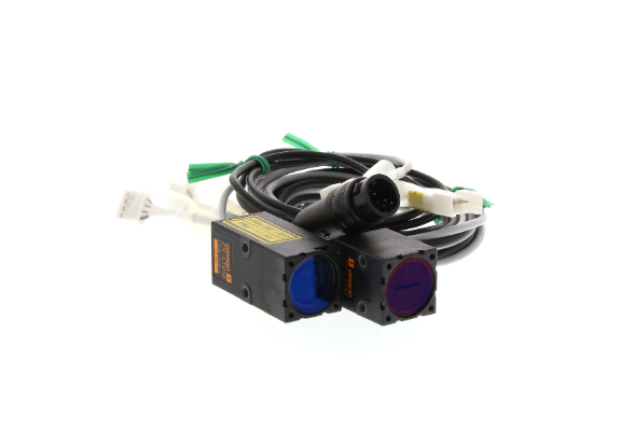

Omron DIA MEASUREMENT SENSOR ZX-LT030 0.5M

The Omron ZX-LT030 0.5M is a high-precision laser through-beam sensor designed for accurate diameter and displacement measurements in industrial applications. With a 30mm measurement width and a sensing range up to 500mm, it offers a resolution of 12 μm, making it ideal for detecting objects as small as 0.3 mm in diameter. The sensor features a visible 650 nm semiconductor laser (Class 1) and requires an external amplifier for operation. Its robust zinc die-cast housing ensures durability, and it operates within a temperature range of 0 to 50°C. The ZX-LT030 0.5M is suitable for applications requiring high accuracy and reliability.

Key Features:

• Model: ZX-LT030 0.5M

• Measurement Width: 30 mm

• Sensing Range: 0–500 mm

• Resolution: 12 μm

• Minimum Detectable Object: 0.3 mm opaque

• Laser Type: Visible semiconductor laser, 650 nm (Class 1)

• Housing Material: Zinc die-cast

• Operating Temperature: 0 to 50°C

• Protection Rating: IP40

• Cable Length: 0.5 m

• Weight: Approximately 450 g
