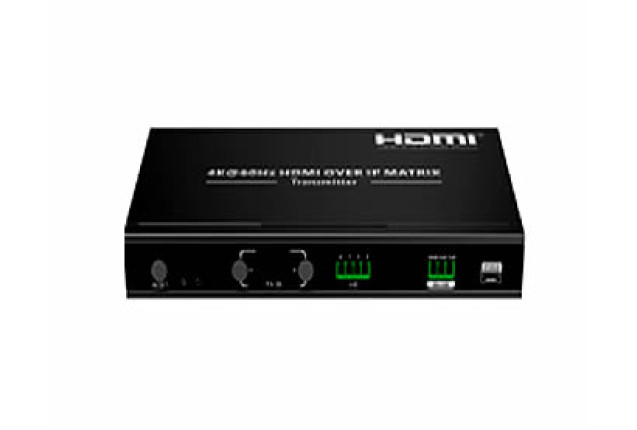

Matrix Extender Over Cat Cable (Model 1080P: iMMS-IM01-TX)

4K@60Hz 120m POE HDMI Matrix Extender with APP Control (Instant Video Preview) - Transmitter

The Matrix Extender Over CAT Cable delivers reliable HDMI signal transmission over long distances using standard CAT5e/CAT6 Ethernet cables, making it ideal for homes, offices, classrooms, and commercial installations. It supports high-definition video, crystal-clear audio, and stable data transfer with minimal signal loss. Designed for long-distance HDMI extension, it reduces cable clutter while offering a cost-effective AV distribution solution. Its plug-and-play design ensures quick installation without additional software or complex configuration. Built with durable components, it provides dependable performance for TVs, projectors, digital signage, conference rooms, and surveillance systems. The compact, lightweight design allows for easy integration into existing AV systems and professional installations. Enjoy seamless 1080p/4K compatibility (model dependent), low latency, and uninterrupted entertainment or business presentations. Choose the Matrix Extender Over CAT Cable for an efficient, high-quality HDMI extender, CAT6 extender, and AV signal extension solution that delivers superior performance and exceptional value.

Features:

1. Built on ipcolor STREAM™ technology to deliver high-definition and low-latency transmission.

2. Supports up to 3840 x 2160@60Hz resolution, backwards compatible.

3. Compatible with Cat5e/6 or higher-level networking cables, transmission distance of Cat6 cable is 120 meters.

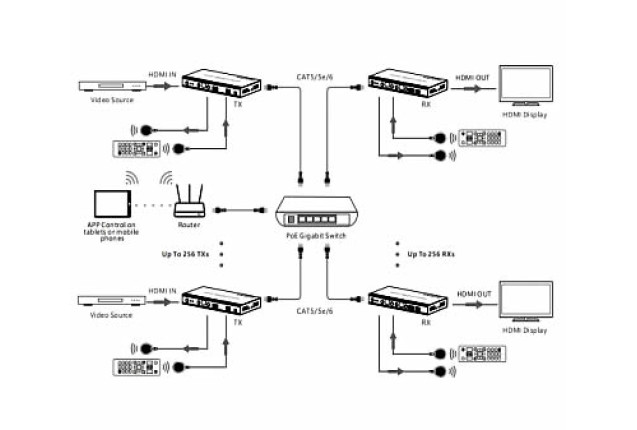

4. Supports one-to-one or many-to-many connections through the gigabit switch.

5. Supports RS-232 passthrough and control.

6. The transmitter supports HDMI loop out.

7. Supports bi-directional IR pass-back(20～60KHz); Supports IR learning remote and control device by APP.

8. Supports I/O interface control.

9. Supports POE(Power over Ethernet).

10. Creating multi-screen splicing with up to 5x5 (also include 1x1/1x2/ 1x3/1x4/1x5/2x1/2x2/2x3/2x4/2x5/3x1/3x2/3x3/3x4/3x5/4x1/4x2/ 4x3/4x4/4x5/5x1/5x2/5x3/5x4/5x5) video wall through switch and controlled by APP.

11. Supports 256 signal source inputs and 256 signal outputs, providing flexible many-to-many matrix configuration (Require APP control operation while connecting more than 100 TX-to-RXs).

12. Firmware upgrading via Micro USB port.

13. Lightning protection, surge protection, ESD protection.

14. Supports stable 24/7 operation.
