SMC MHF2-16D-M9PWSDPC Part no GX300I07490

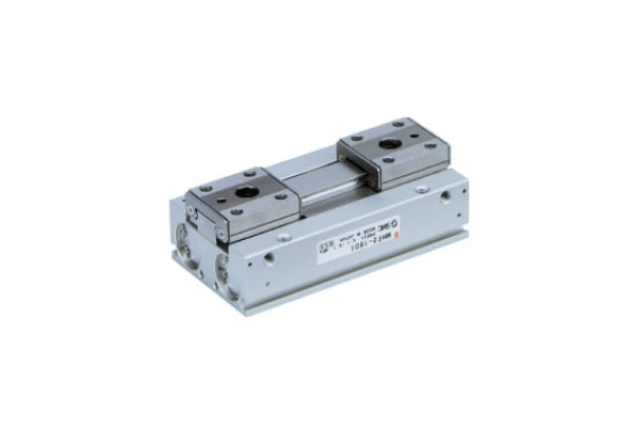

The SMC MHF2-16D-M9PWSDPC is a compact, low-profile air gripper designed for precision automation applications. Part of SMC Corporation's MHF2 Series, this model features a 16mm bore size and a 16mm stroke, delivering a strong gripping force of 90N at 0.5 MPa. Its double-acting, parallel-style linear guide design ensures high rigidity and smooth operation, making it ideal for space-constrained environments. Equipped with an M9PW auto switch and axial piping, it offers enhanced mounting flexibility and sensor compatibility for precise positioning.

Key Features:

• Compact Design: Height reduced by approximately 66% compared to standard grippers, minimizing moment generation.

• High Gripping Force: Double piston mechanism provides strong grip in a compact form factor.

• Versatile Stroke Options: Available in short, middle, and long strokes to suit various applications.

• Sensor Compatibility: Supports actuator position sensors for enhanced control.

• Mounting Flexibility: Axial piping and linear guide design allow for easy integration into existing systems.

Specifications:

• Model: MHF2-16D-M9PWSDPC

• Bore Size: 16mm

• Stroke: 16mm

• Gripping Force: 90N at 0.5 MPa

• Operating Pressure Range: 0.1 to 0.7 MPa

• Weight: Approximately 1.00880 lb

• Auto Switch: M9PW (2 pcs., 0.5m lead wire)

• Piping: Axial

  This air gripper is suitable for various industrial automation tasks, including pick-and-place operations, assembly lines, and robotic end-effectors, where space-saving and precise gripping are essential.
